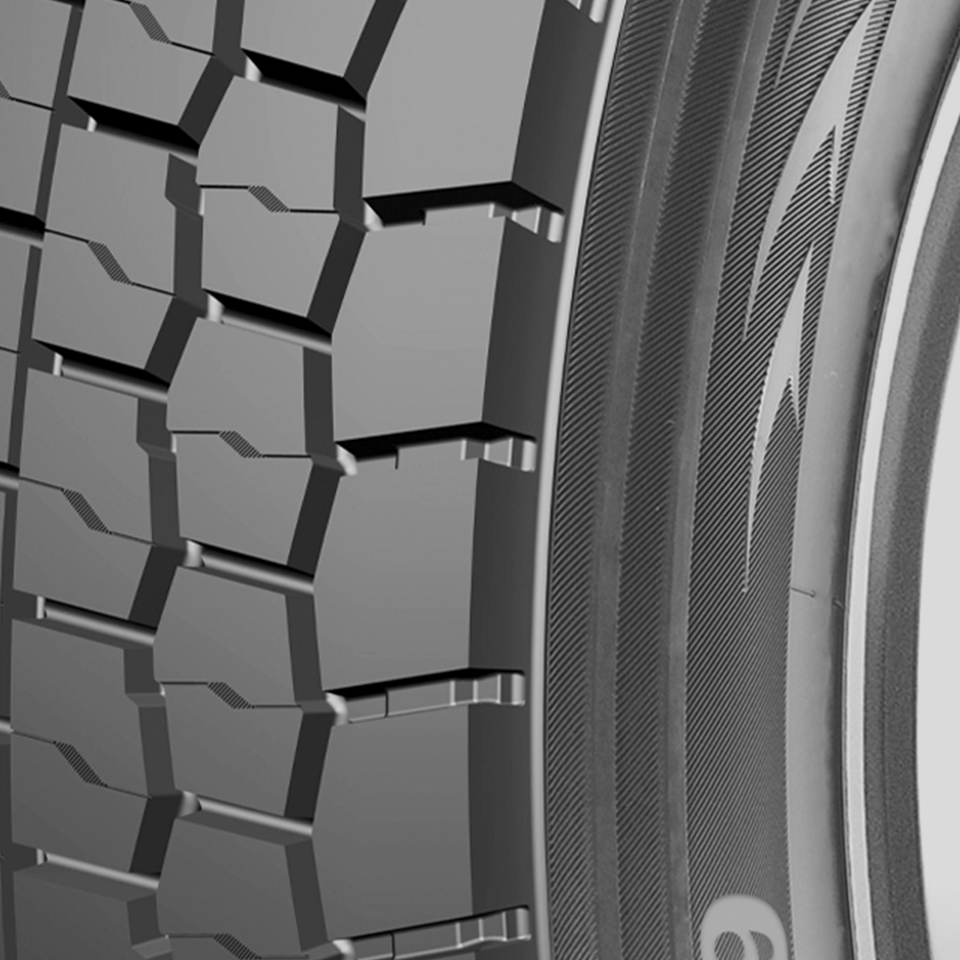

High-strength steel belts and a reinforced sidewall structure enhance durability, prevent impact damage, and ensure safer, more reliable tire performance.

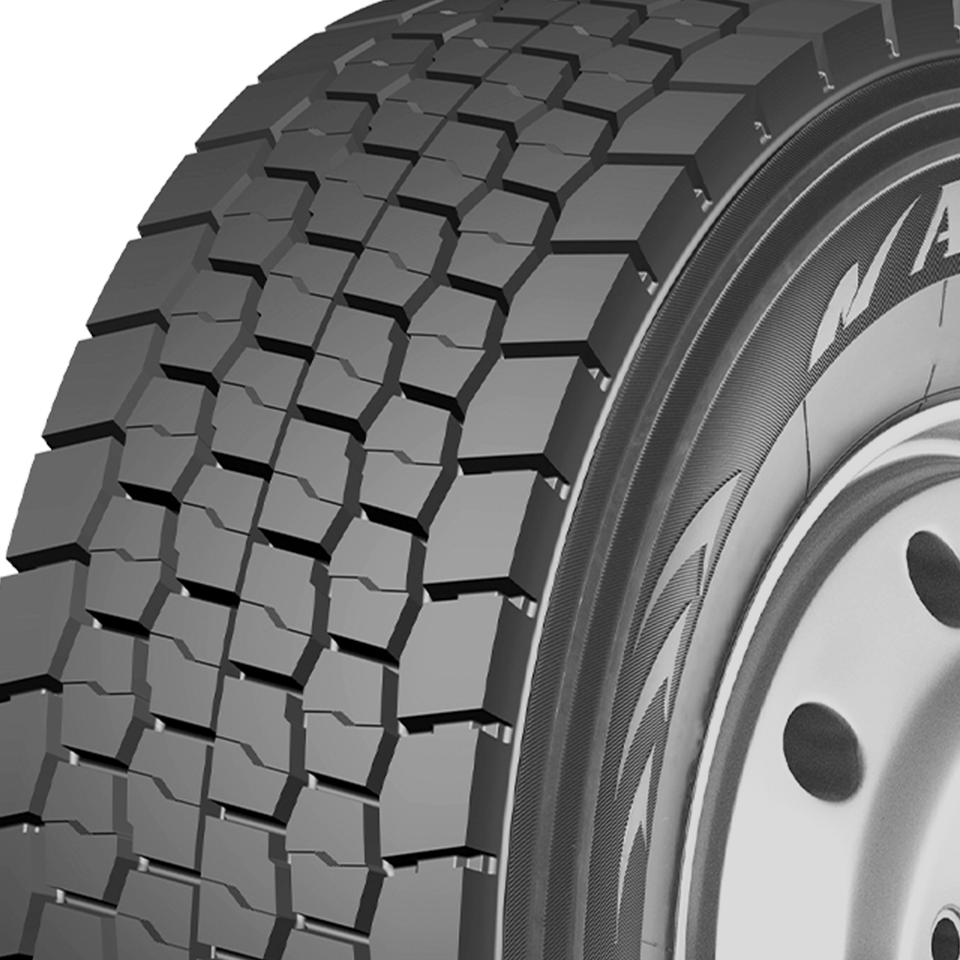

Optimized contour design distributes tread forces evenly, minimizing stress concentration and significantly enhancing the tire’s wear resistance and service life.

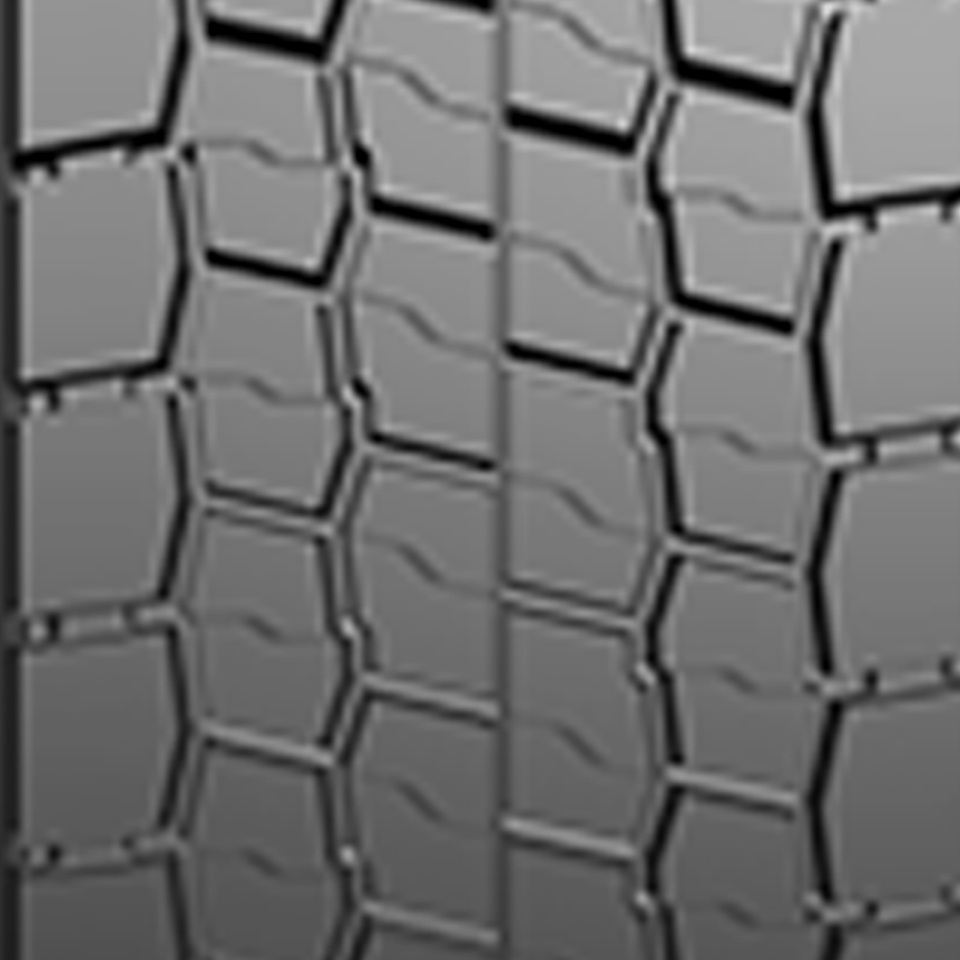

New transverse pattern design enhances braking efficiency, delivers stronger traction, and ensures stable performance across various road conditions.
| Size | PR | Load Range | Load Index | Speed Rating | Max Speed mph | Tread Depth | Standard Rim | Max Tire Load Single | Max Tire Load Dual | |||||||
| 32nds | mm | Ibs. | psi. | kg. | kPa. | Ibs. | psi. | kg. | kPa. | |||||||
| 295/80R22.5 | 20 | L | 154/149 | L | 75 | 25.8 | 20.5 | 9.00 | 8270 | 123 | 3750 | 850 | 7160 | 123 | 3250 | 850 |
| 315/70R22.5 | 20 | L | 156/150 (154/150) | L(M) | 75 | 25.2 | 20.0 | 9.00 | 8820 | 130 | 4000 | 900 | 7390 | 130 | 3350 | 900 |
| 315/80R22.5 | 22 | M | 160/157 (157/154) | J(K) | 62 | 27.7 | 22.0 | 9.00 | 9920 | 138 | 4500 | 950 | 9090 | 138 | 4125 | 950 |
| Size | PR | Load Range | Load Index | Speed Rating | Max Speed mph | Tread Depth | Standard Rim | Max Tire Load Single | Max Tire Load Dual | |||||||
| 32nds | mm | Ibs. | psi. | kg. | kPa. | Ibs. | psi. | kg. | kPa. | |||||||
| 295/80R22.5 | 20 | L | 154/149 | L | 75 | 25.8 | 20.5 | 9.00 | 8270 | 123 | 3750 | 850 | 7160 | 123 | 3250 | 850 |
| 315/70R22.5 | 20 | L | 156/150 (154/150) | L(M) | 75 | 25.2 | 20.0 | 9.00 | 8820 | 130 | 4000 | 900 | 7390 | 130 | 3350 | 900 |
| 315/80R22.5 | 22 | M | 160/157 (157/154) | J(K) | 62 | 27.7 | 22.0 | 9.00 | 9920 | 138 | 4500 | 950 | 9090 | 138 | 4125 | 950 |
