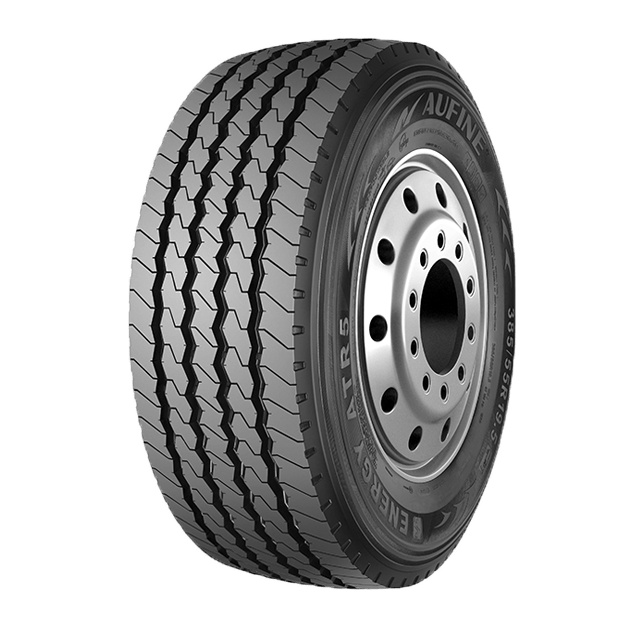

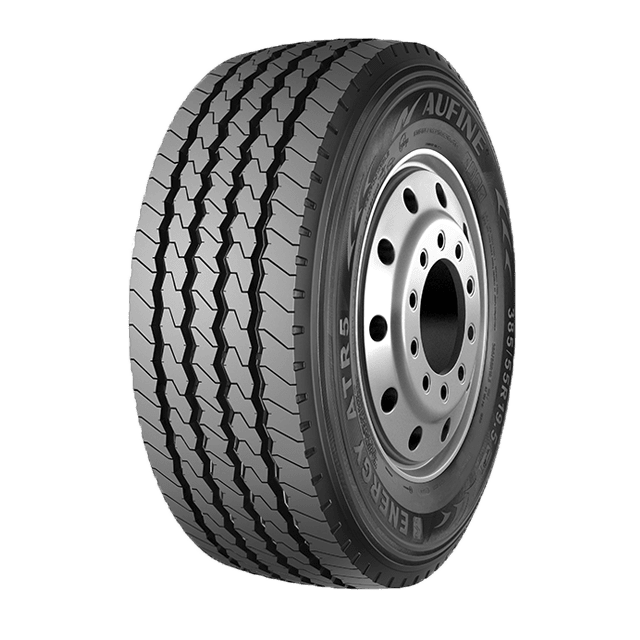

ENERGY ATR5

Trailer

Regional

9 Great

Features

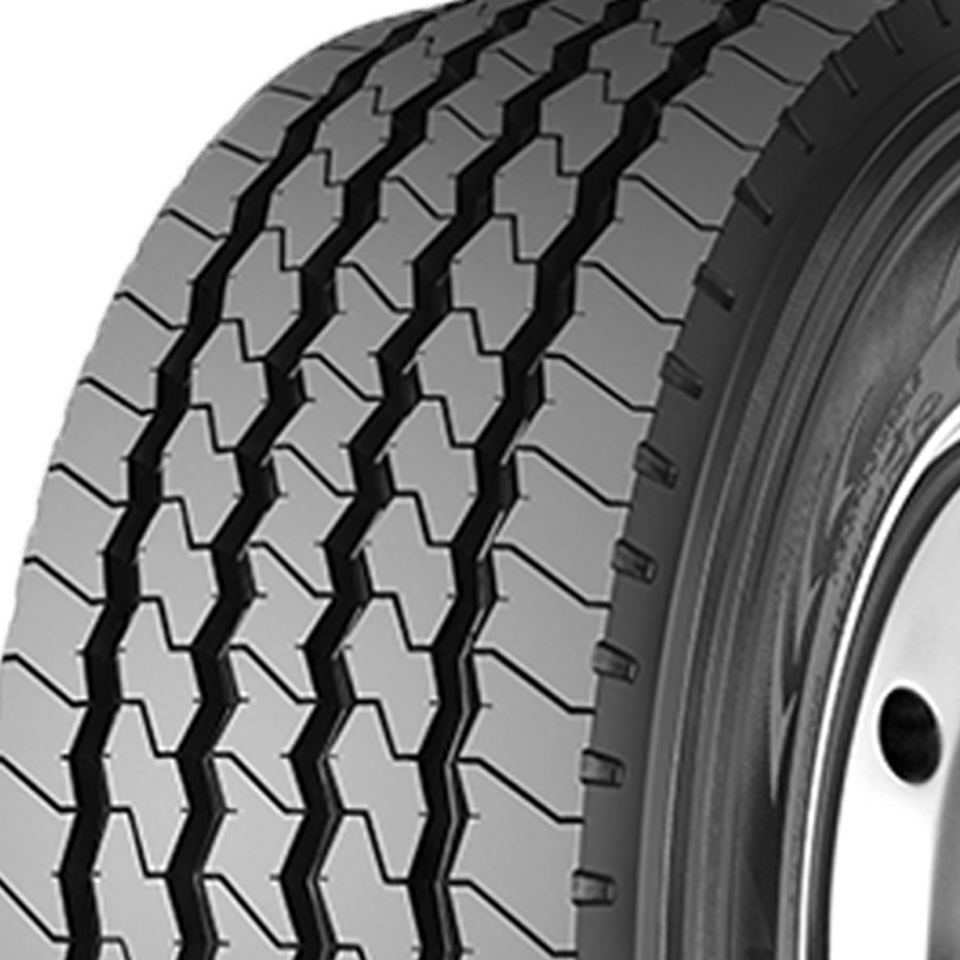

Innovative tread design incorporates four zig-zag longitudinal grooves that significantly enhance transverse traction and deliver superior wet-surface braking performance.

Features

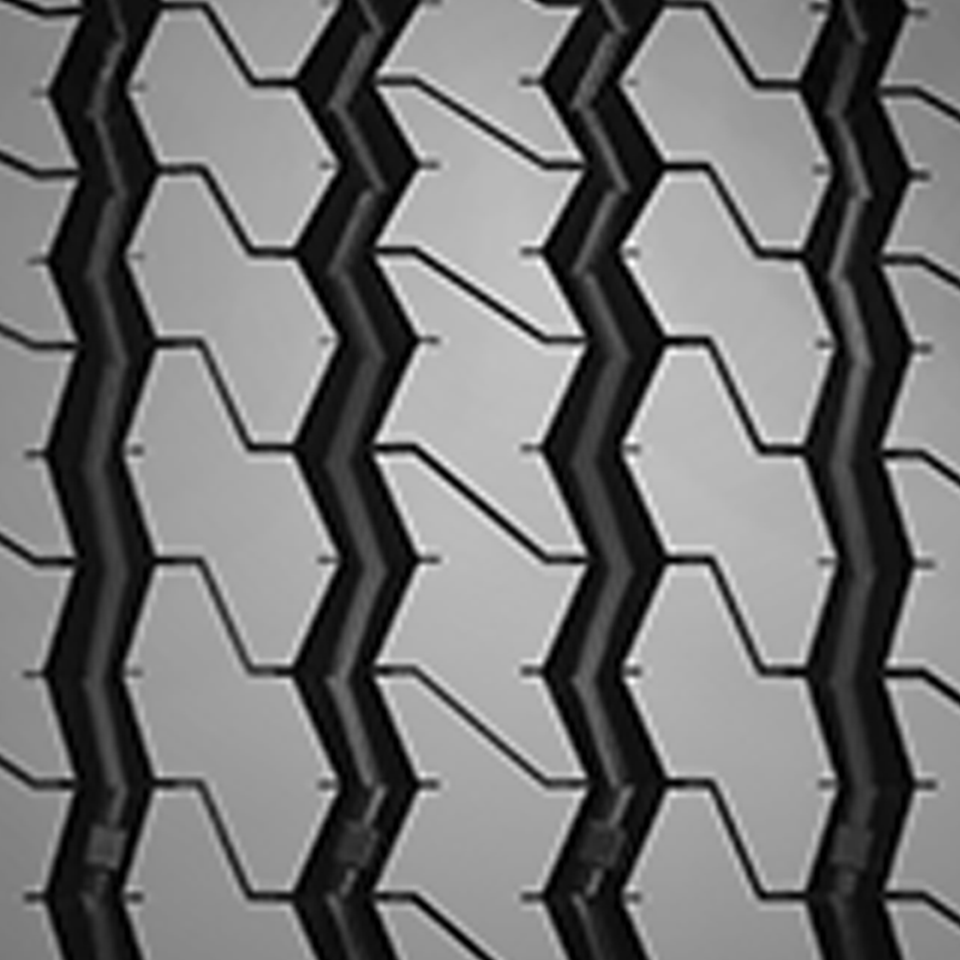

Engineered with robust zig-zag groove technology, these grooves effectively channel water away to maintain exceptional roadholding and stability even on wet surfaces.

Features

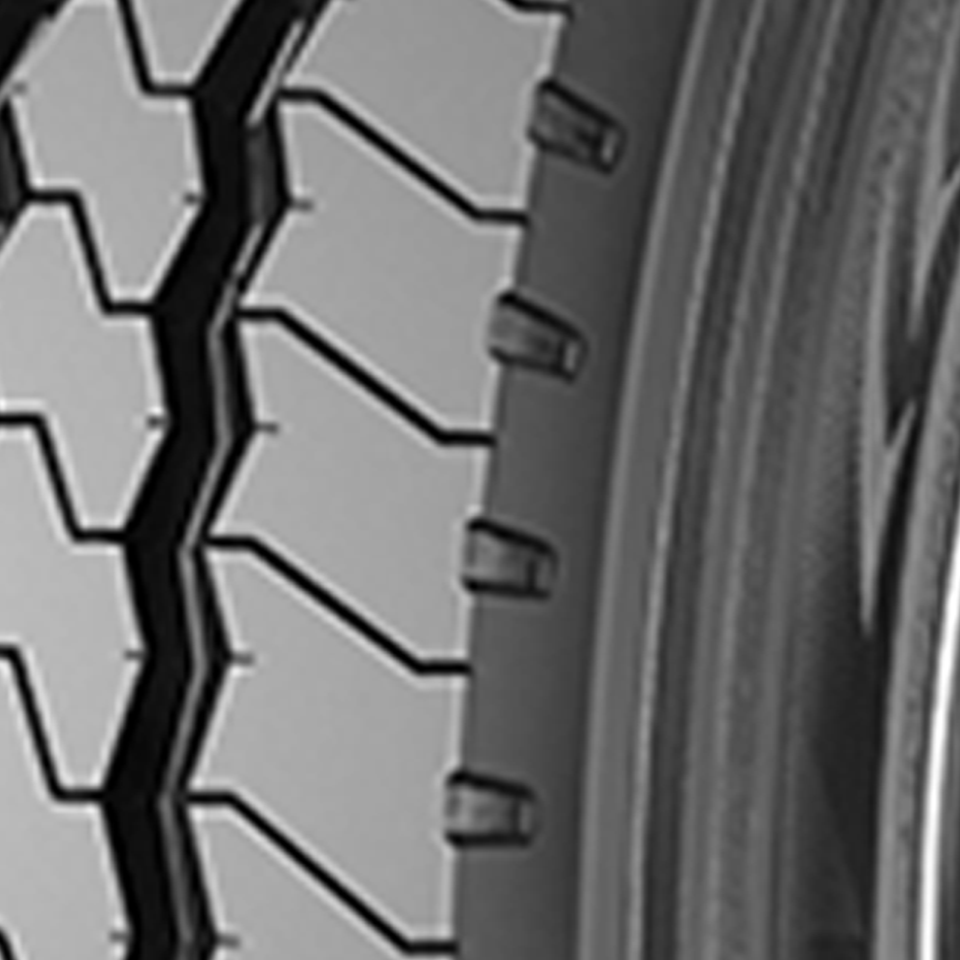

Specially engineered groove geometry utilizes optimized angles and widths to effectively prevent stone trapping while maintaining consistent traction performance.

Parameter

Size	P.R.	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
Size	P.R.	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/55R19.5	18	J	TL	156	19.5	15.5	62	J	36.2	919	15.6	396	12.25	8820	130	4000	900	——	——	——	——
385/55R22.5	20	L	TL	160	19.5	15.5	62	J	39.2	996	15.2	386	12.25	9920	130	4500	900	——	——	——	——

size

Size	P.R.	Load Range	Style	Load Index	Tread Depth		Max Speed mph	Speed Rating	Overall Diameter		Overall Width		Standard Rim	Max. Tire Load Single				Max. Tire Load Dual
Size	P.R.	Load Range	Style	Load Index	32nds	mm	Max Speed mph	Speed Rating	in.	mm.	in.	mm.	Standard Rim	lbs.	psi	kg.	kpa	lbs.	psi	kg.	kpa
385/55R19.5	18	J	TL	156	19.5	15.5	62	J	36.2	919	15.6	396	12.25	8820	130	4000	900	——	——	——	——
385/55R22.5	20	L	TL	160	19.5	15.5	62	J	39.2	996	15.2	386	12.25	9920	130	4500	900	——	——	——	——
