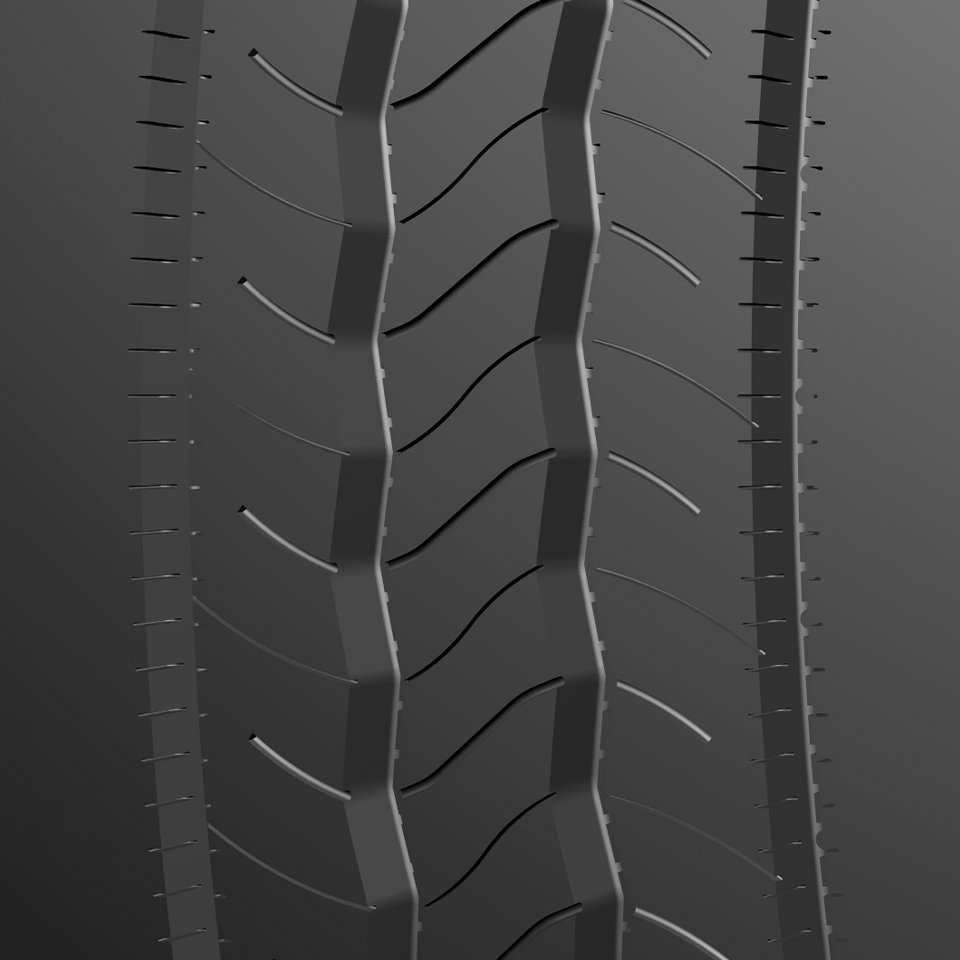

· Four longitudinal grooves ensure precise and stable handling performance.

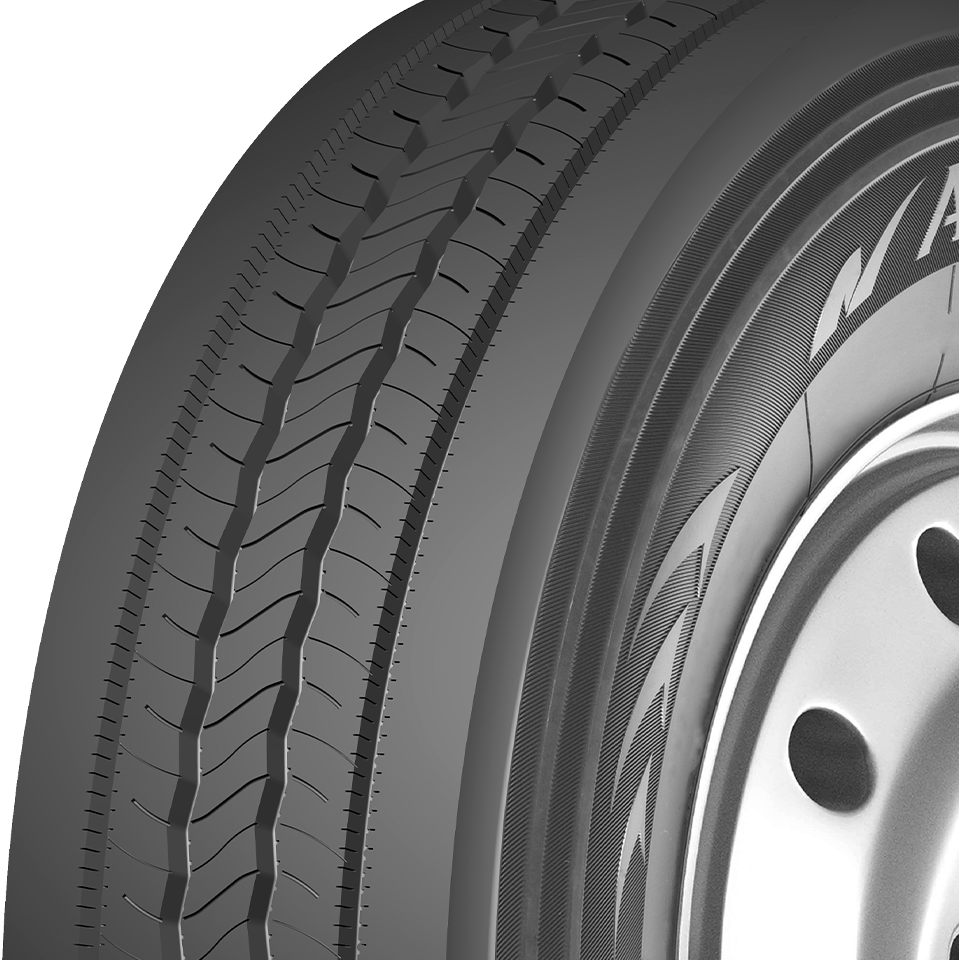

· Zigzag transverse tread pattern significantly enhances grip on wet roads for safer driving.

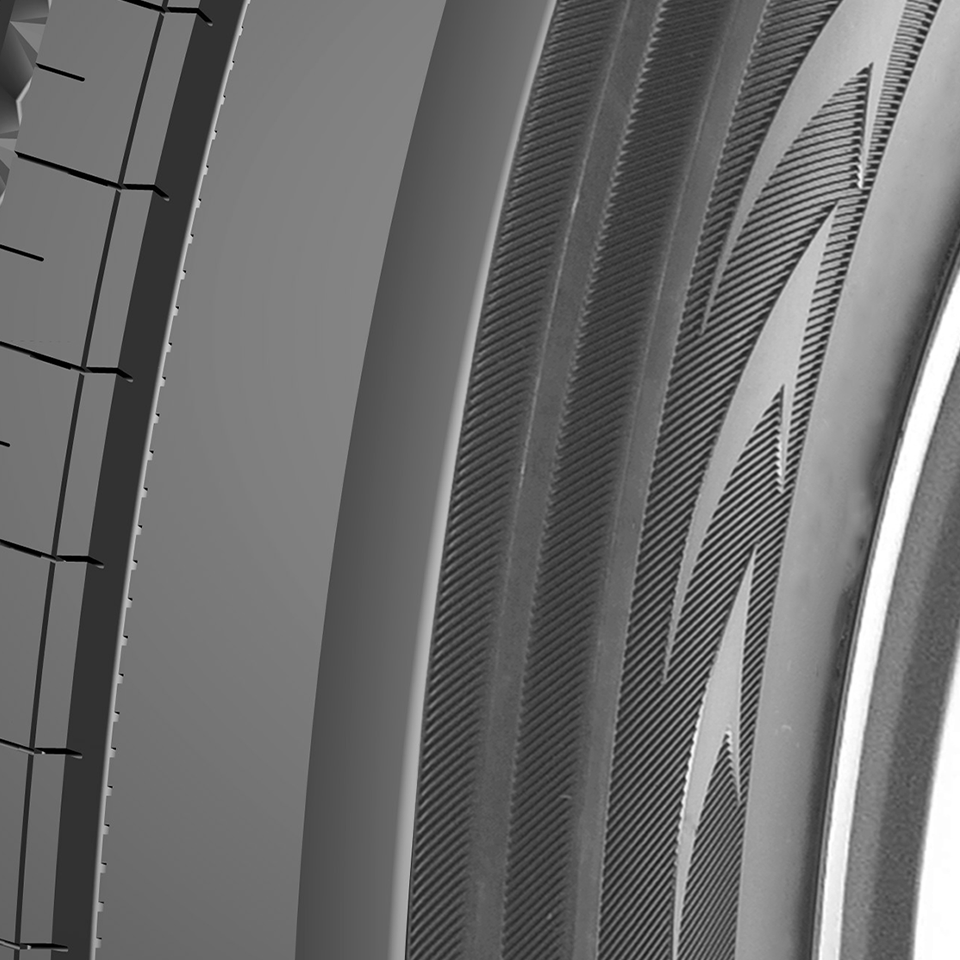

· Reinforced casing boosts the tire’s toughness and overall durability.
| Size | PR | Load Range | Load Index | Speed Rating | Max Speed mph | Tread Depth | Standard Rim | Max Tire Load Single | Max Tire Load Dual | |||||||
| 32nds | mm | Ibs. | psi. | kg. | kPa. | Ibs. | psi. | kg. | kPa. | |||||||
| 11R22.5 | 16 | H | 146/143 | M | 81 | – | 15 | 8 25 | 6610.00 | 125 | 3000 | 830 | 6005.00 | 120 | 2725 | 830 |
| 11R24.5 | 16 | H | 149/146 | M | 81 | – | 15 | 8.25 | 7160.00 | 125 | 3250 | 830 | 6610.00 | 120 | 3000 | 830 |
| 295/75R22.5 | 16 | H | 146/143 | M | 81 | – | 15 | 9.00 | 6610.00 | 123 | 3000 | 830 | 6005.00 | 120 | 2725 | 830 |
| 255/70R22.5 | 16 | H | 140/137 | M | 81 | – | 14 | 7.50 | 5510.00 | 140 | 2500 | 830 | 5070.00 | 120 | 2300 | 830 |
| Size | PR | Load Range | Load Index | Speed Rating | Max Speed mph | Tread Depth | Standard Rim | Max Tire Load Single | Max Tire Load Dual | |||||||
| 32nds | mm | Ibs. | psi. | kg. | kPa. | Ibs. | psi. | kg. | kPa. | |||||||
| 11R22.5 | 16 | H | 146/143 | M | 81 | – | 15 | 8 25 | 6610.00 | 125 | 3000 | 830 | 6005.00 | 120 | 2725 | 830 |
| 11R24.5 | 16 | H | 149/146 | M | 81 | – | 15 | 8.25 | 7160.00 | 125 | 3250 | 830 | 6610.00 | 120 | 3000 | 830 |
| 295/75R22.5 | 16 | H | 146/143 | M | 81 | – | 15 | 9.00 | 6610.00 | 123 | 3000 | 830 | 6005.00 | 120 | 2725 | 830 |
| 255/70R22.5 | 16 | H | 140/137 | M | 81 | – | 14 | 7.50 | 5510.00 | 140 | 2500 | 830 | 5070.00 | 120 | 2300 | 830 |
