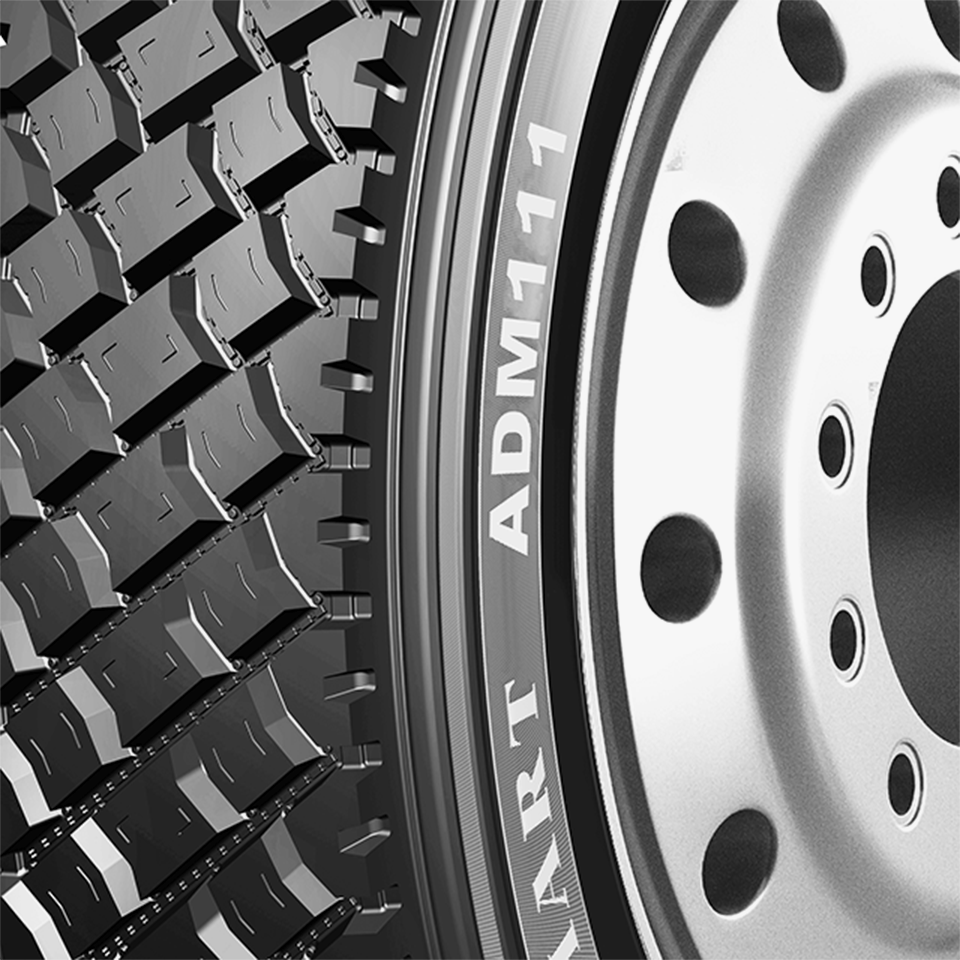

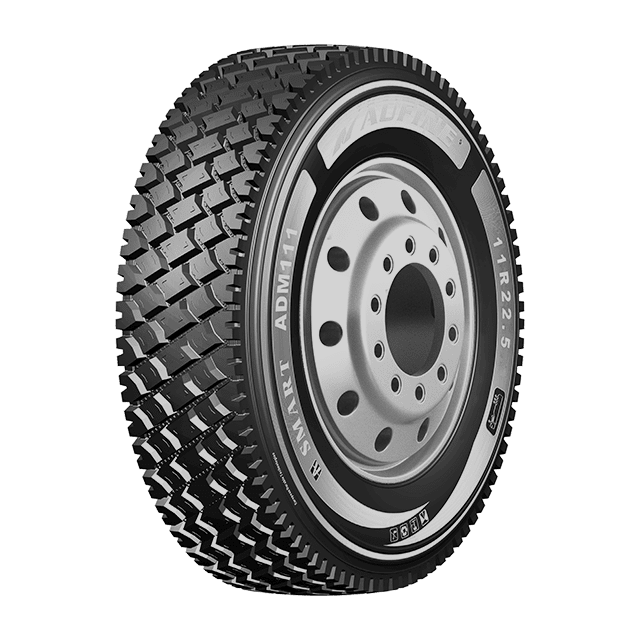

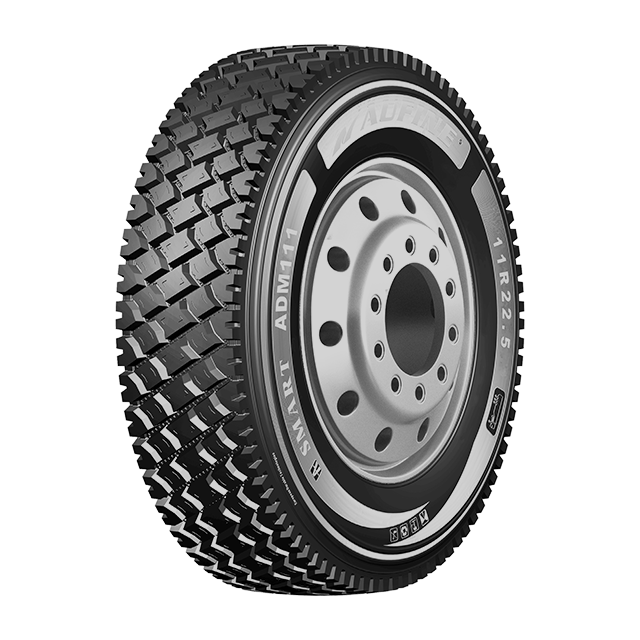

SMART ADM111

Drive

Mix

9.6 Excellent

Features

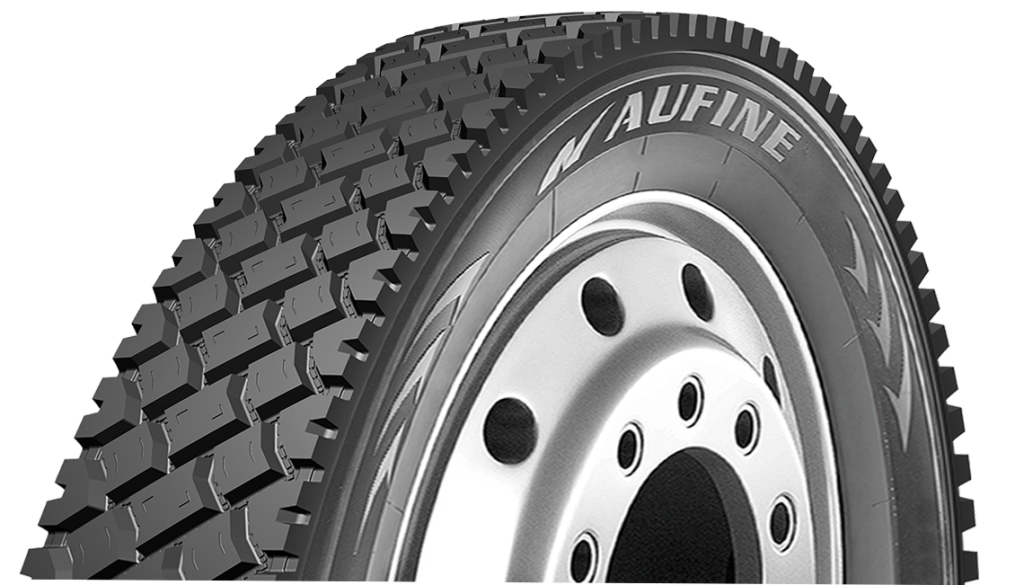

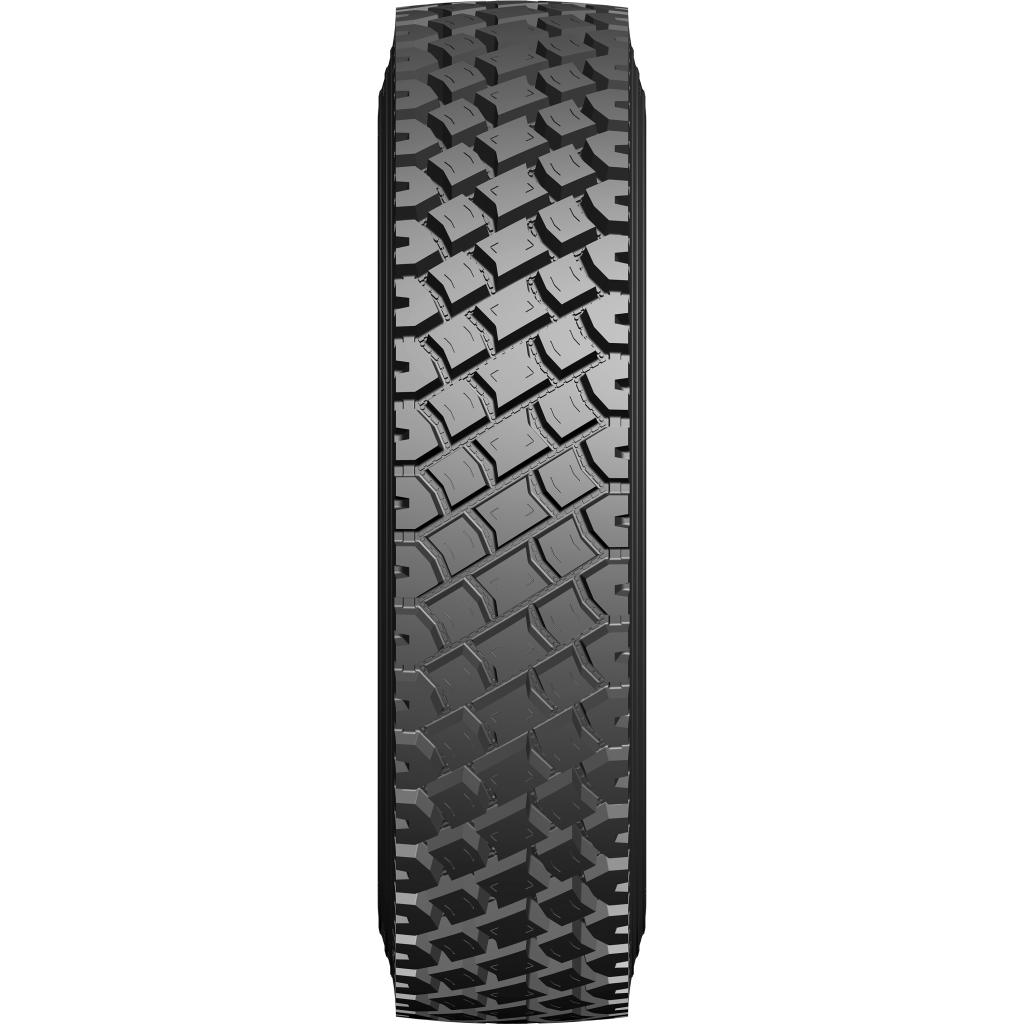

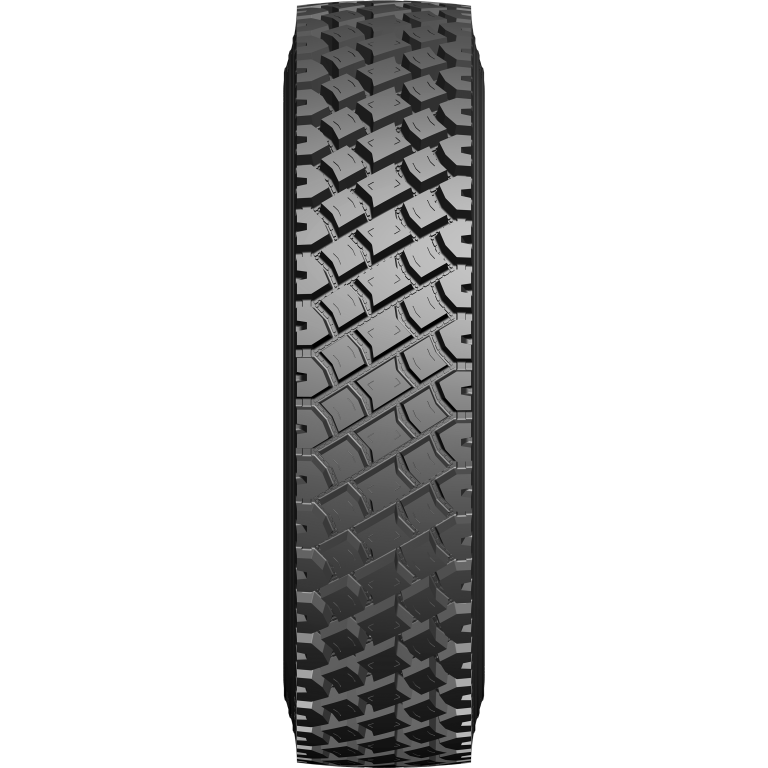

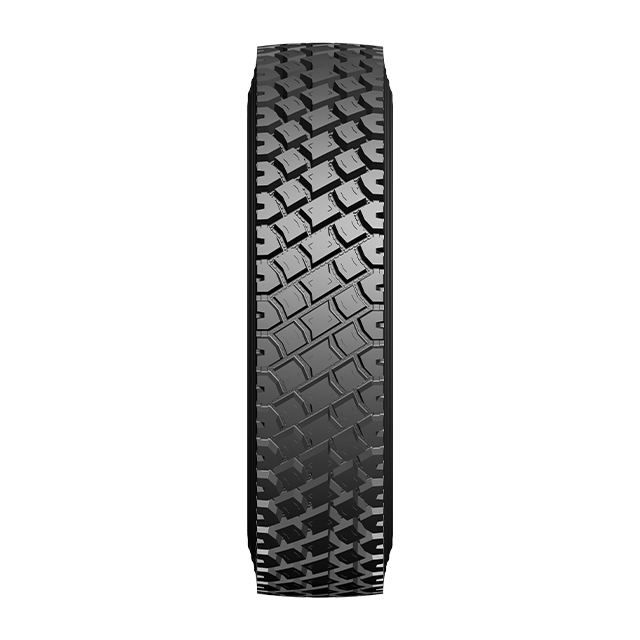

Designed for on-and-off road service with increased tread width and groove depth, it features high resistance to lacerations, high traction on rough terrain and mud, and mileage and acoustic comfort on asphalted roads.

Features

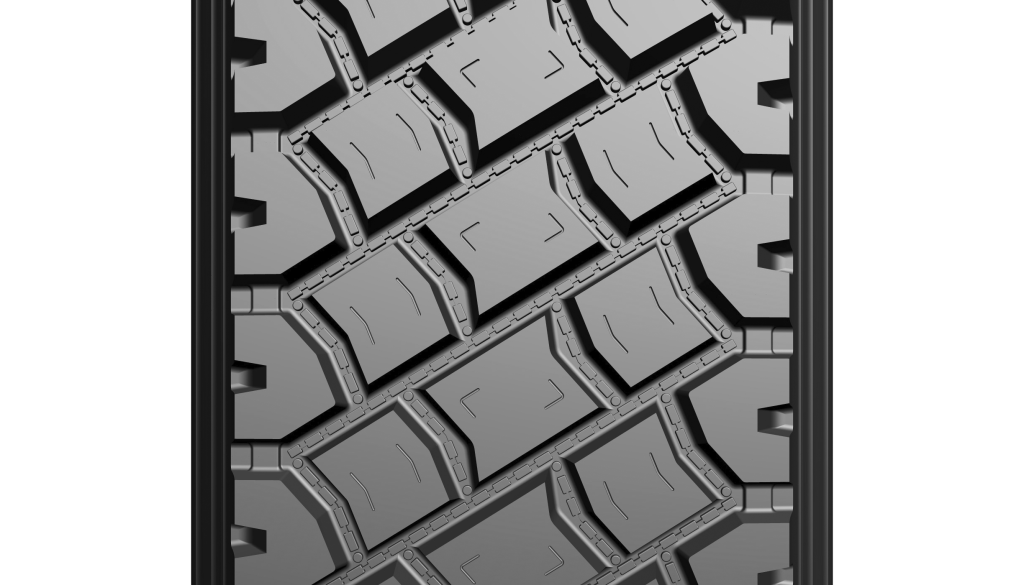

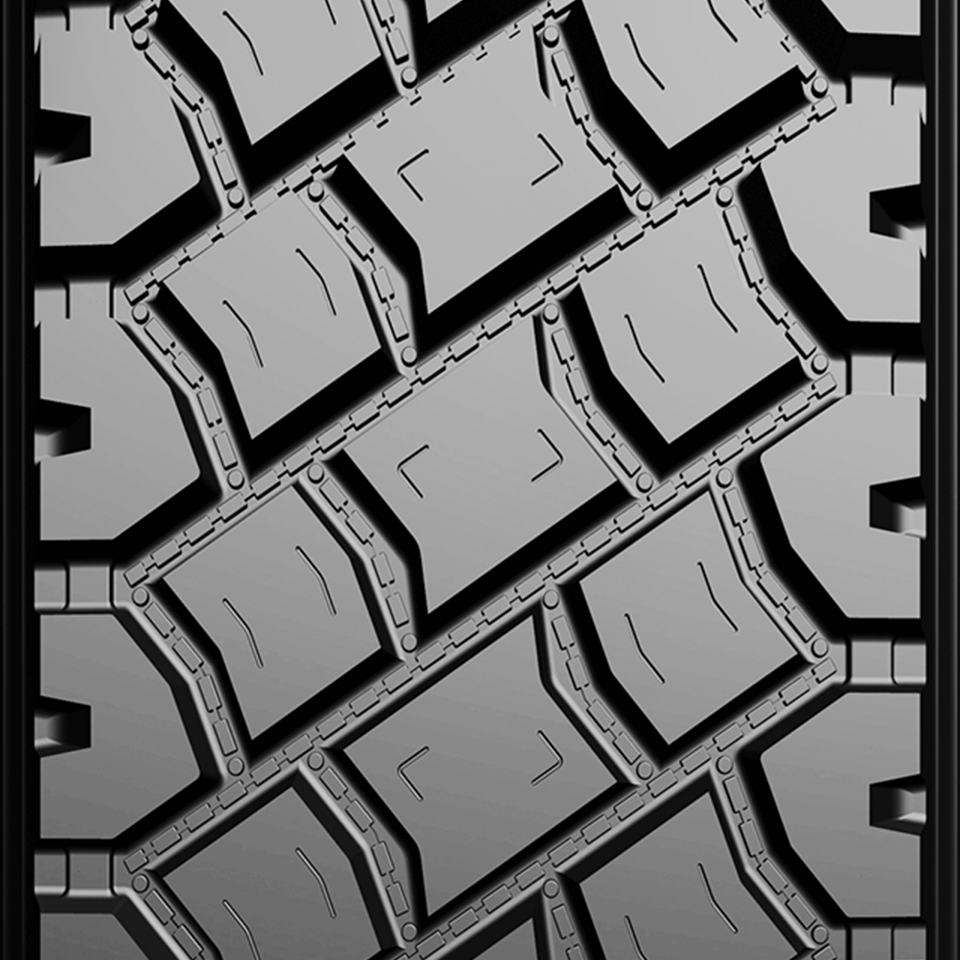

Great Wall shaped edges design enhances grip for slippery surfaces.

Features

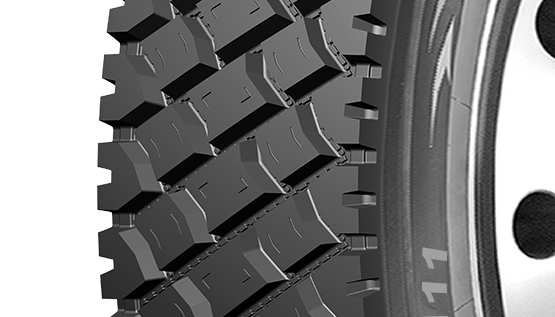

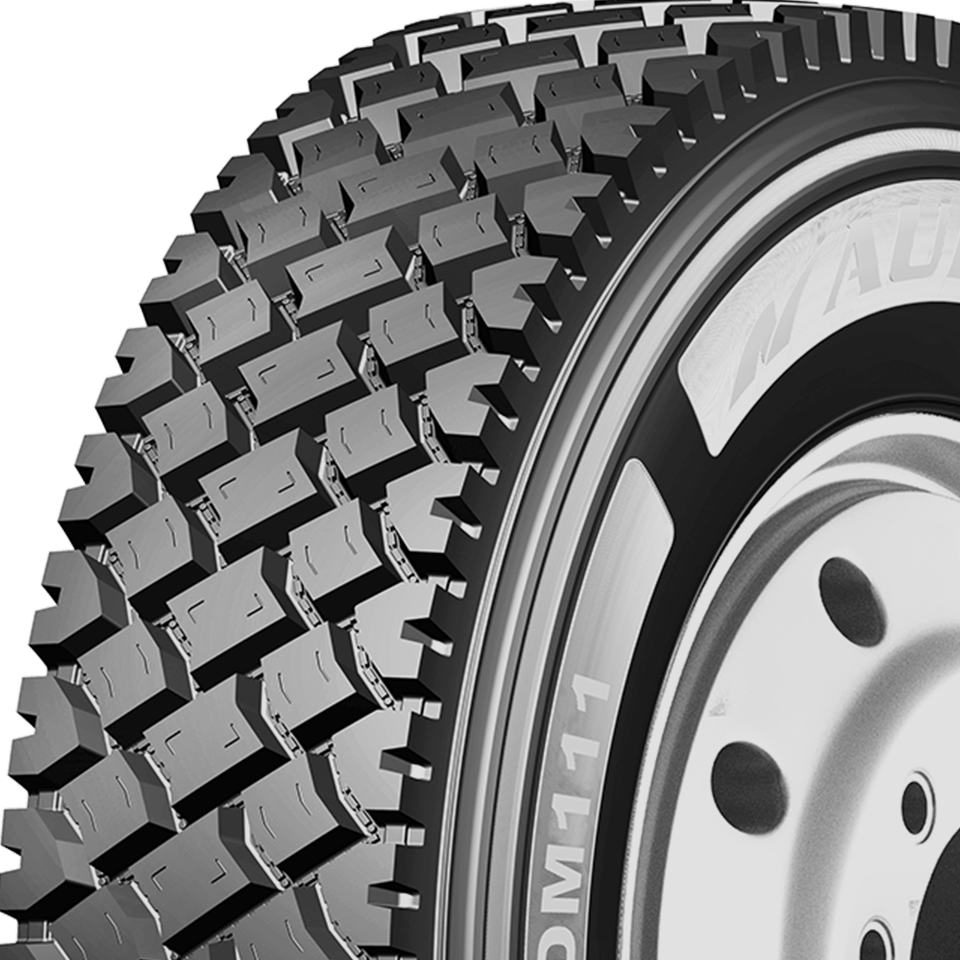

House shaped blocks shoulder design grants excellent lateral grip in slippery conditions.

Parameter

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
11R22.5	16	H	146/143	L	75	32.0	25.4	8.25	6610	120	3000	830	6005	120	2725	830
11R24.5	16	H	149/146	L	75	32.0	25.4	8.25	7160	120	3250	830	6610	120	3000	830

size

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
11R22.5	16	H	146/143	L	75	32.0	25.4	8.25	6610	120	3000	830	6005	120	2725	830
11R24.5	16	H	149/146	L	75	32.0	25.4	8.25	7160	120	3250	830	6610	120	3000	830
