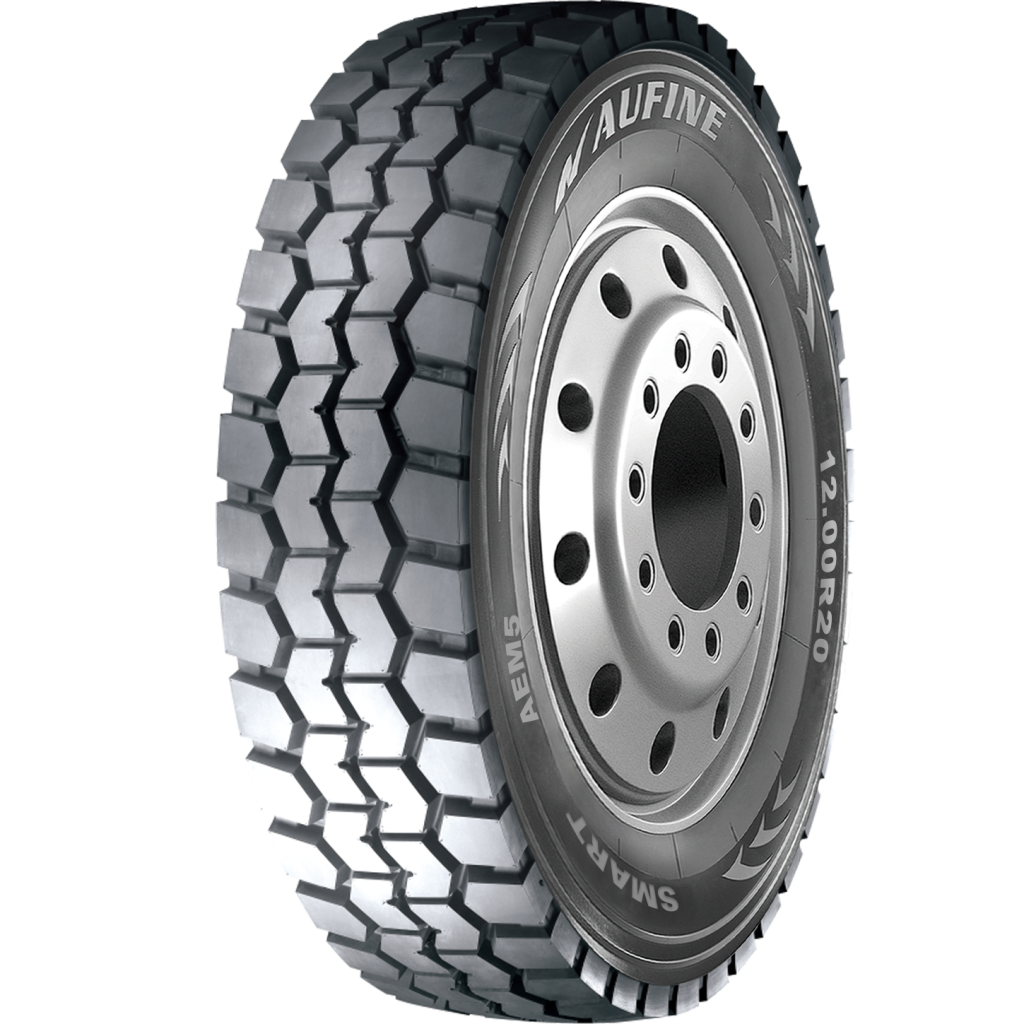

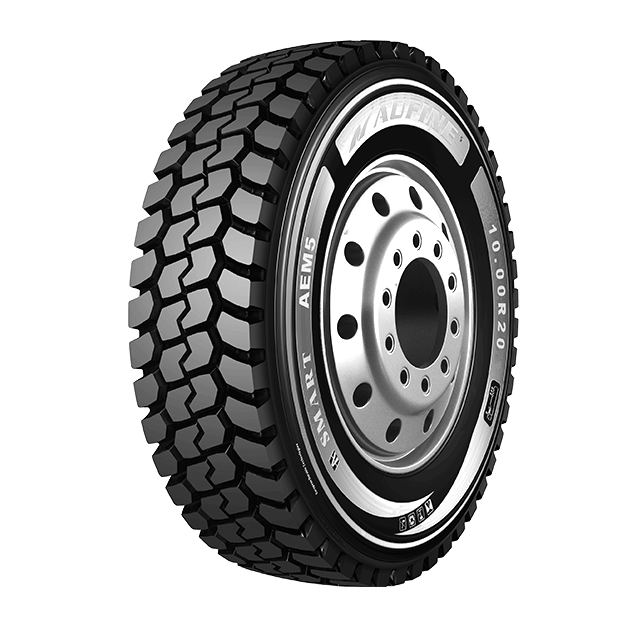

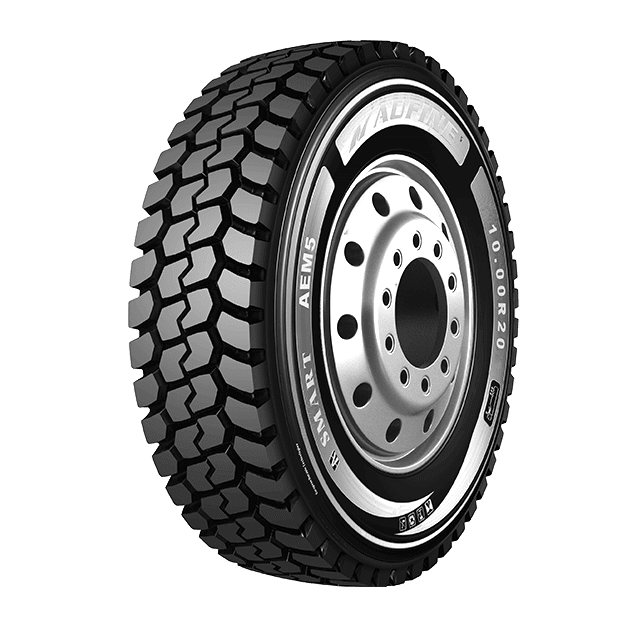

SMART AEM5

Steer/All Position

Mix

Steer/All Position

9.5

Excellent

Excellent

Excellent

Great

Features

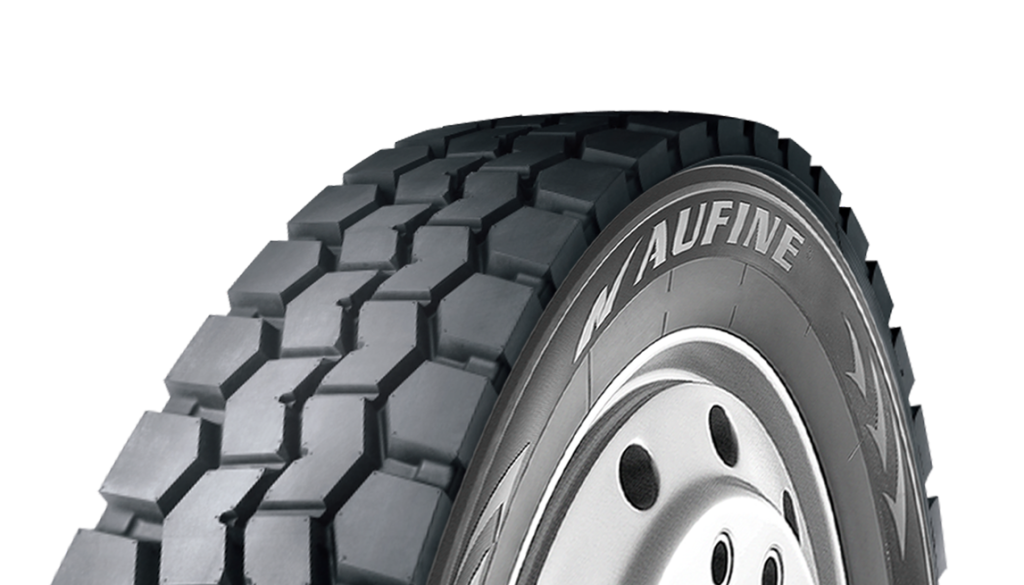

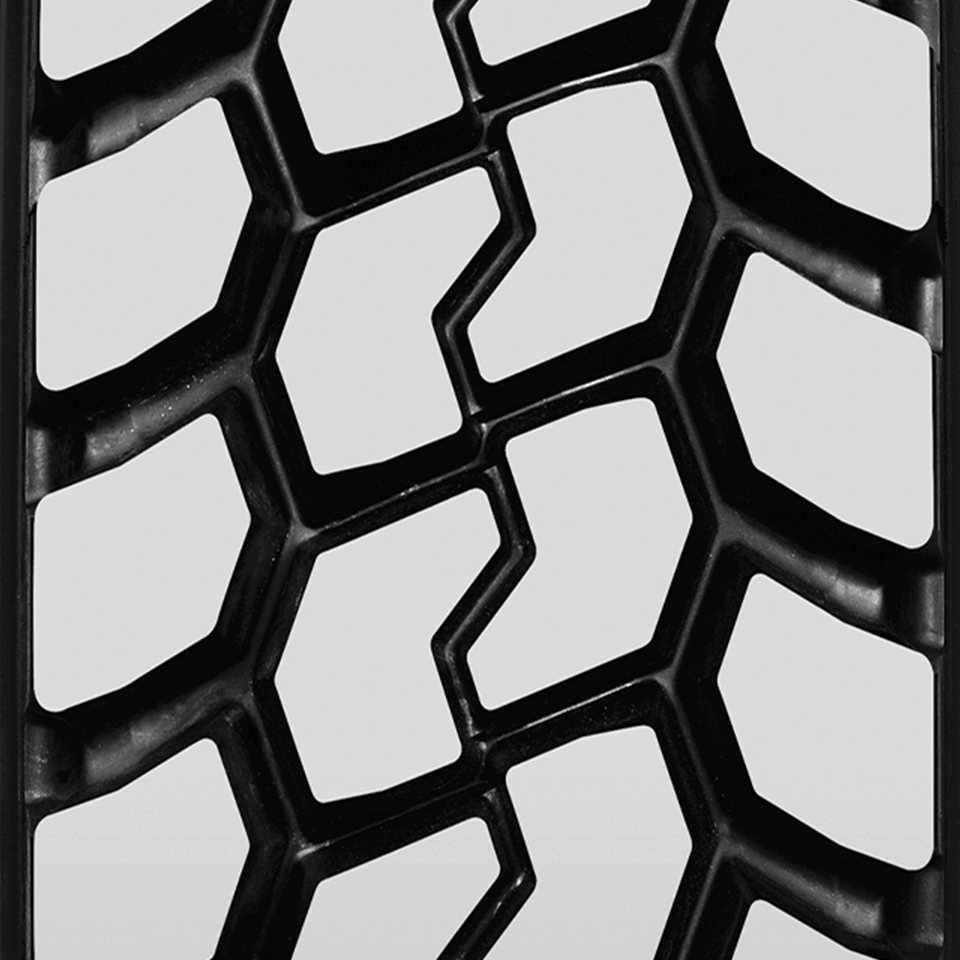

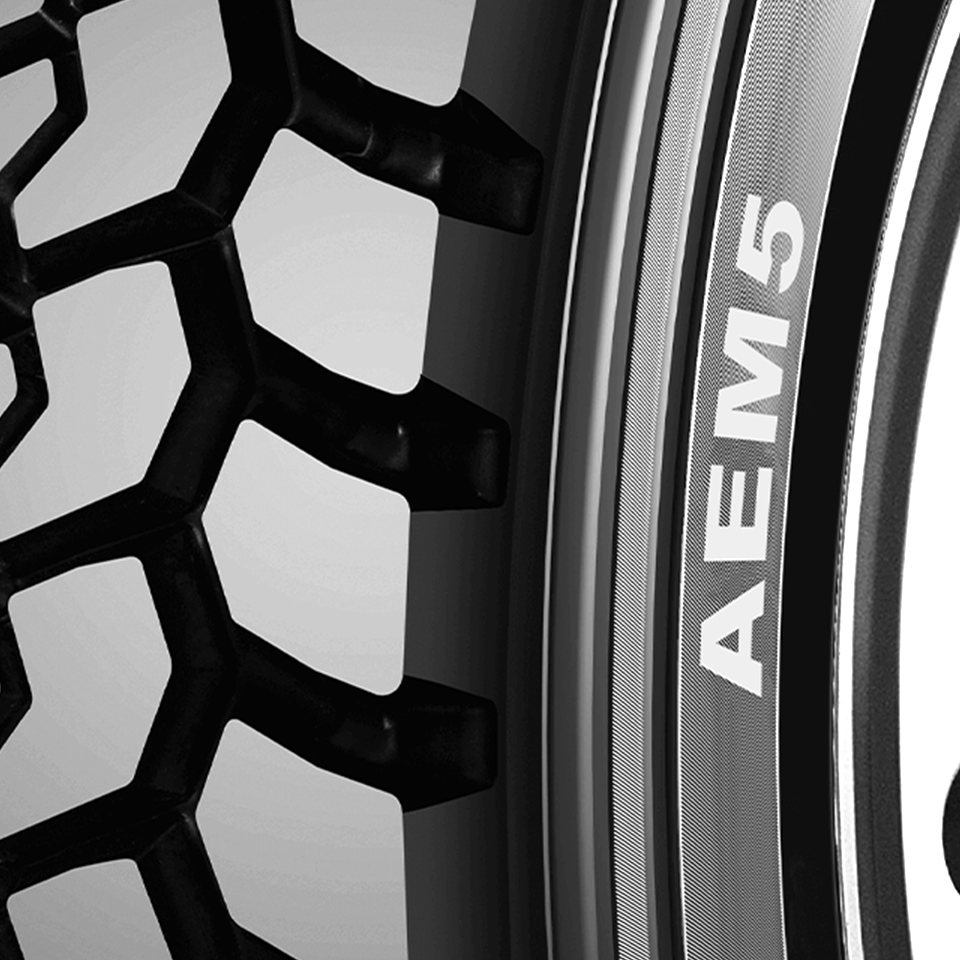

The special groove design ensures driving stability and improves self-cleaning capabilities.

Features

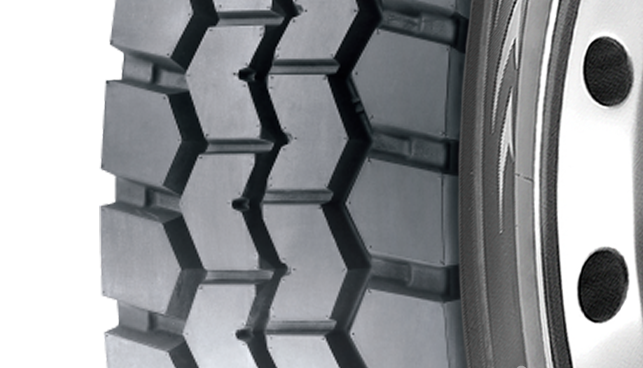

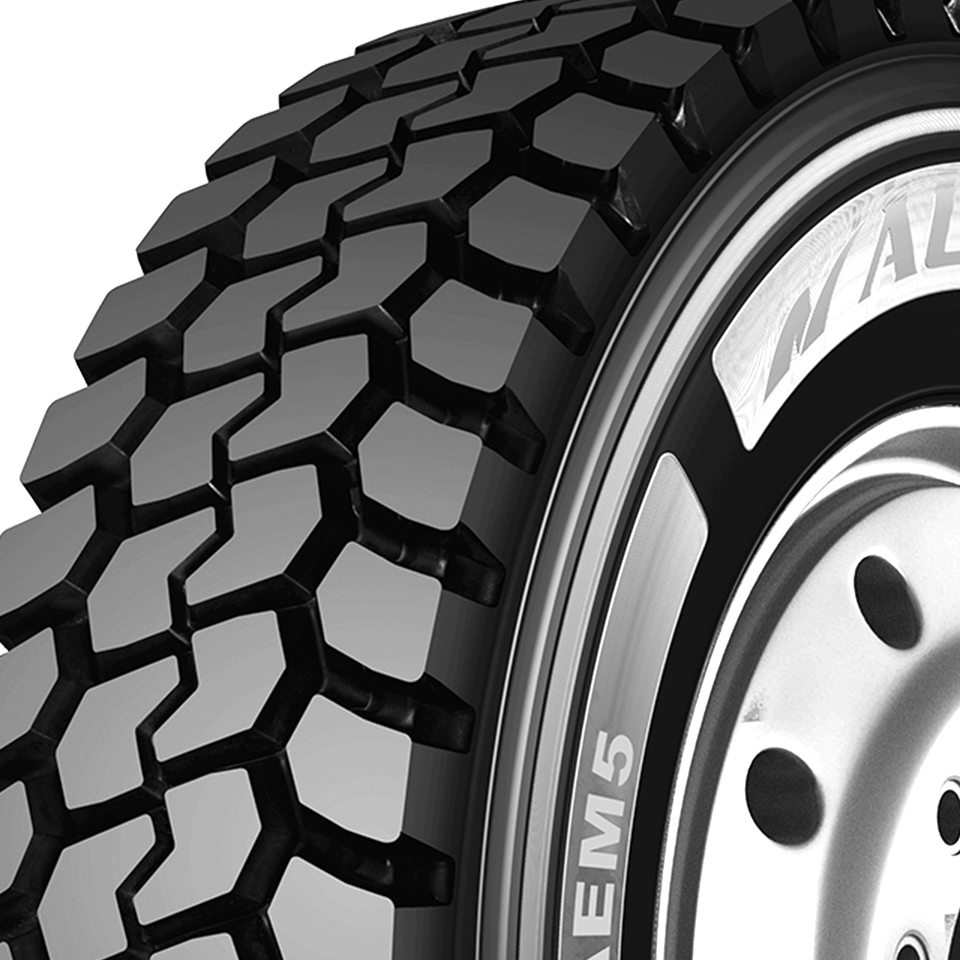

The strengthened shoulder ribs and protrusions within the grooves improve scratch resistance and uniform wear.

Features

The grip angle of the tire reduces rolling resistance for improved fuel economy.

Parameter

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
10.00R20	18	J	149/146	J	62	22.6	17.9	7.50	7160	135	3250	930	6610	135	3000	930
12.00R20	22	M	158/155 (156/153)	F ( J )	50	22.6	17.9	8.50	9370	140	4250	970	8540	140	3875	970

size

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
10.00R20	18	J	149/146	J	62	22.6	17.9	7.50	7160	135	3250	930	6610	135	3000	930
12.00R20	22	M	158/155 (156/153)	F ( J )	50	22.6	17.9	8.50	9370	140	4250	970	8540	140	3875	970
