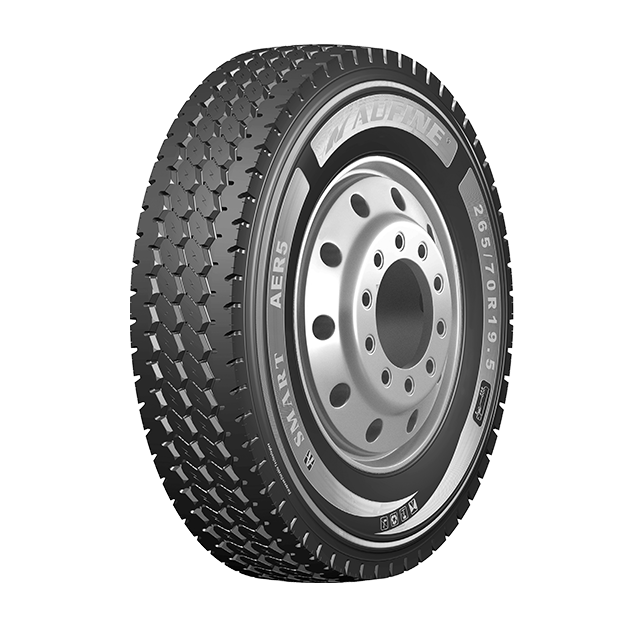

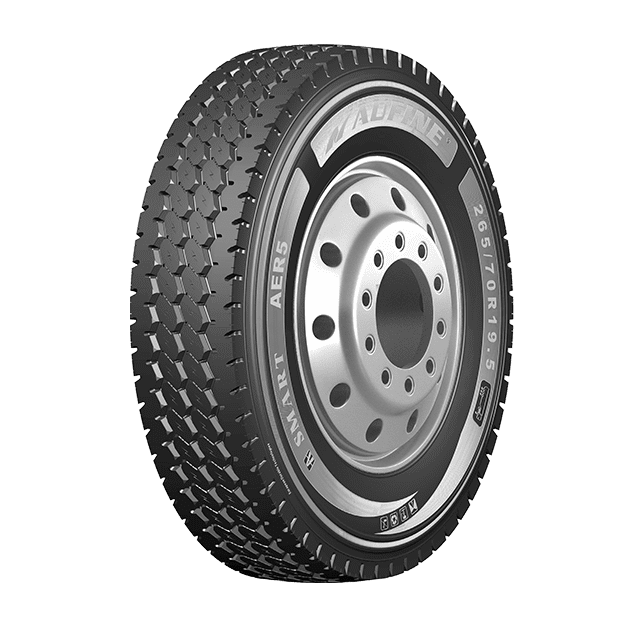

SMART AER5

Steer/All Position

Regional

Steer/All Position

9.3

Great

Excellent

Excellent

Great

Features

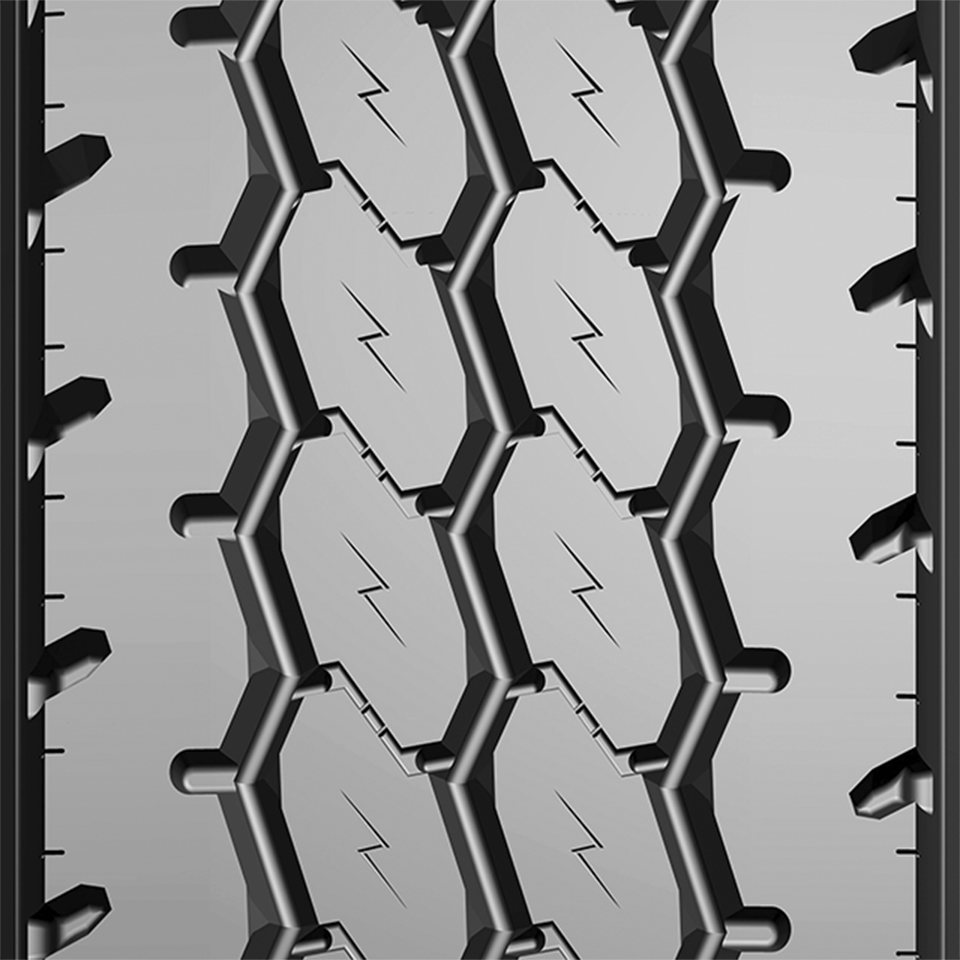

Tread width and groove depth enhance robustness and longer mileage.

Features

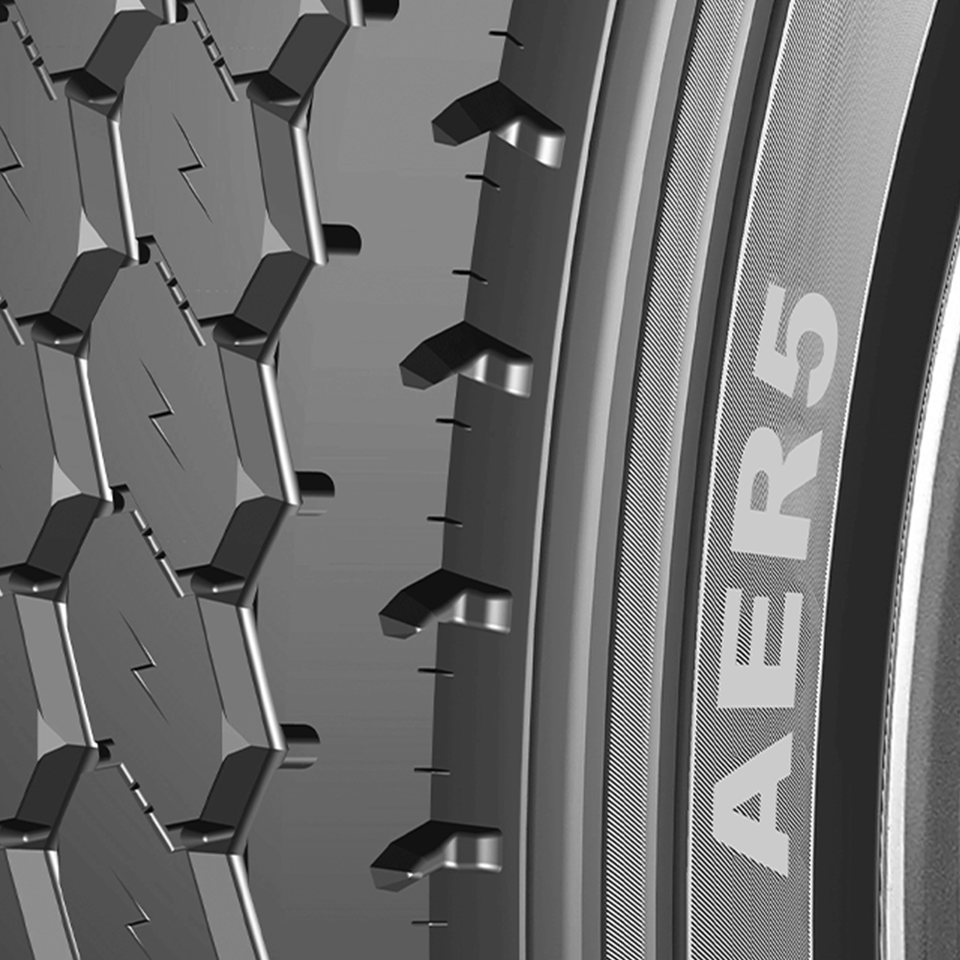

Optimized shoulder design extends tread life.

Features

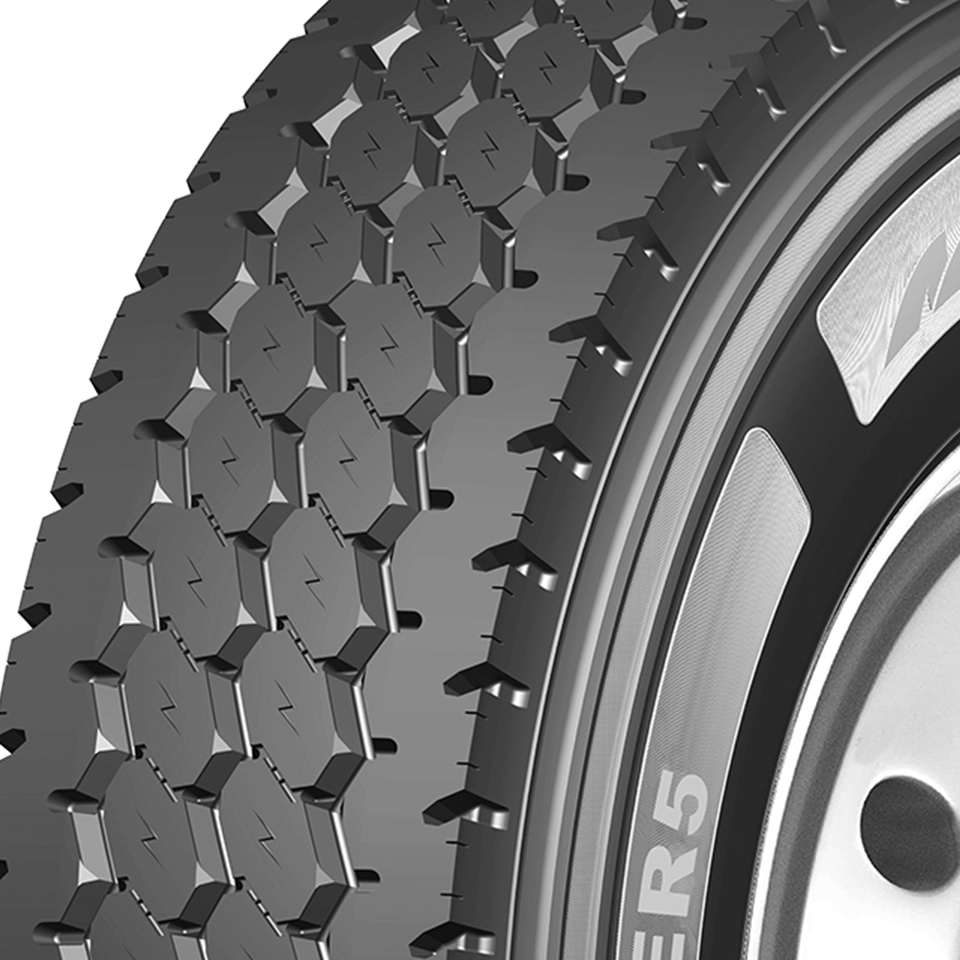

The tough ties between blocks provide powerful traction in on and off road services.

Parameter

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
265/70R19.5	20	L	146/144	K	68	20.8	16.5	7.50	6610	135	3000	930	6175	135	2800	930
10.00R20	18	J	149/146	K	68	20.8	16.5	7.50	7160	120	3250	830	6610	120	3000	830
11.00R20	18	J	152/149	K	68	20.8	16.5	8.00	7830	135	3550	930	7160	135	3250	930

size

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
265/70R19.5	20	L	146/144	K	68	20.8	16.5	7.50	6610	135	3000	930	6175	135	2800	930
10.00R20	18	J	149/146	K	68	20.8	16.5	7.50	7160	120	3250	830	6610	120	3000	830
11.00R20	18	J	152/149	K	68	20.8	16.5	8.00	7830	135	3550	930	7160	135	3250	930
