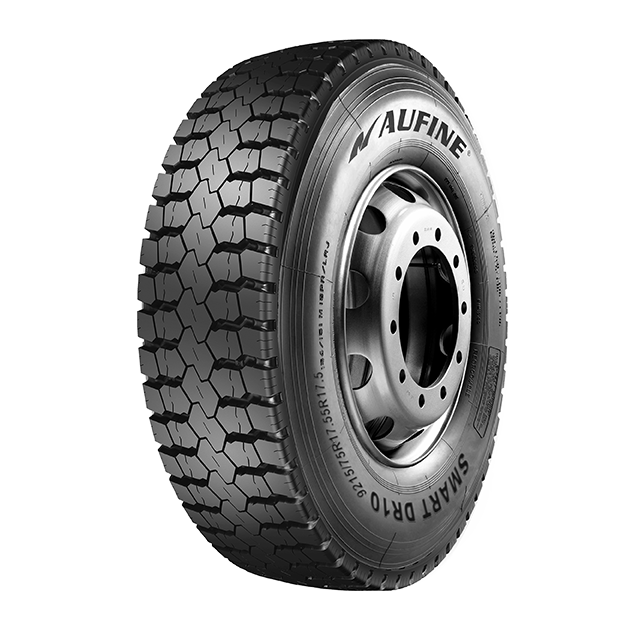

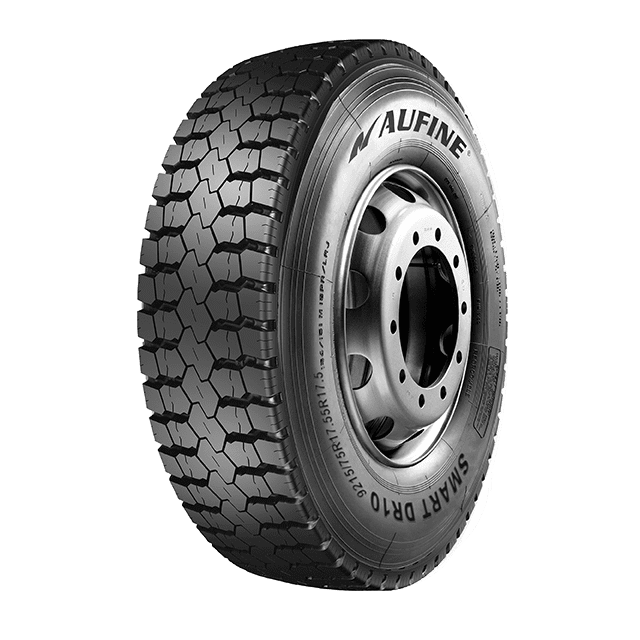

SMART DR10

Drive

Regional

8.5

Great

Great

Great

Great

Features

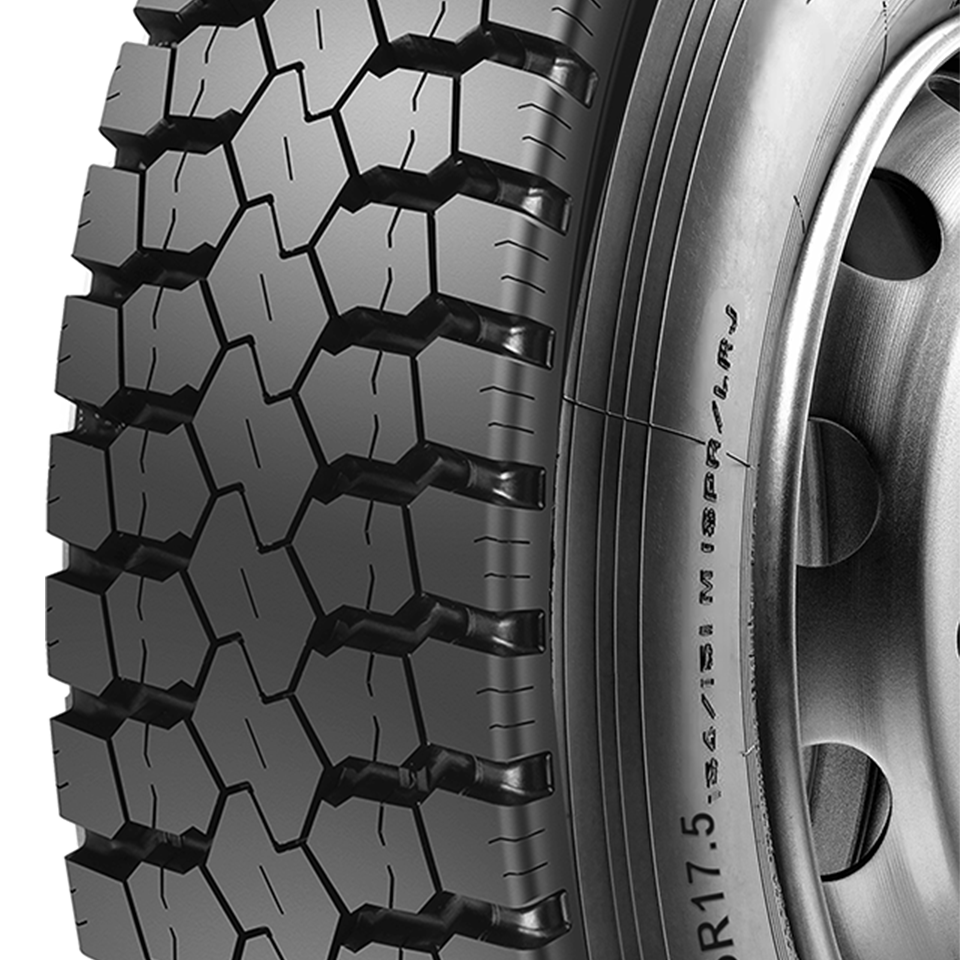

Wide and deep transversal grooves provide road holding and traction on slippery surface.

Features

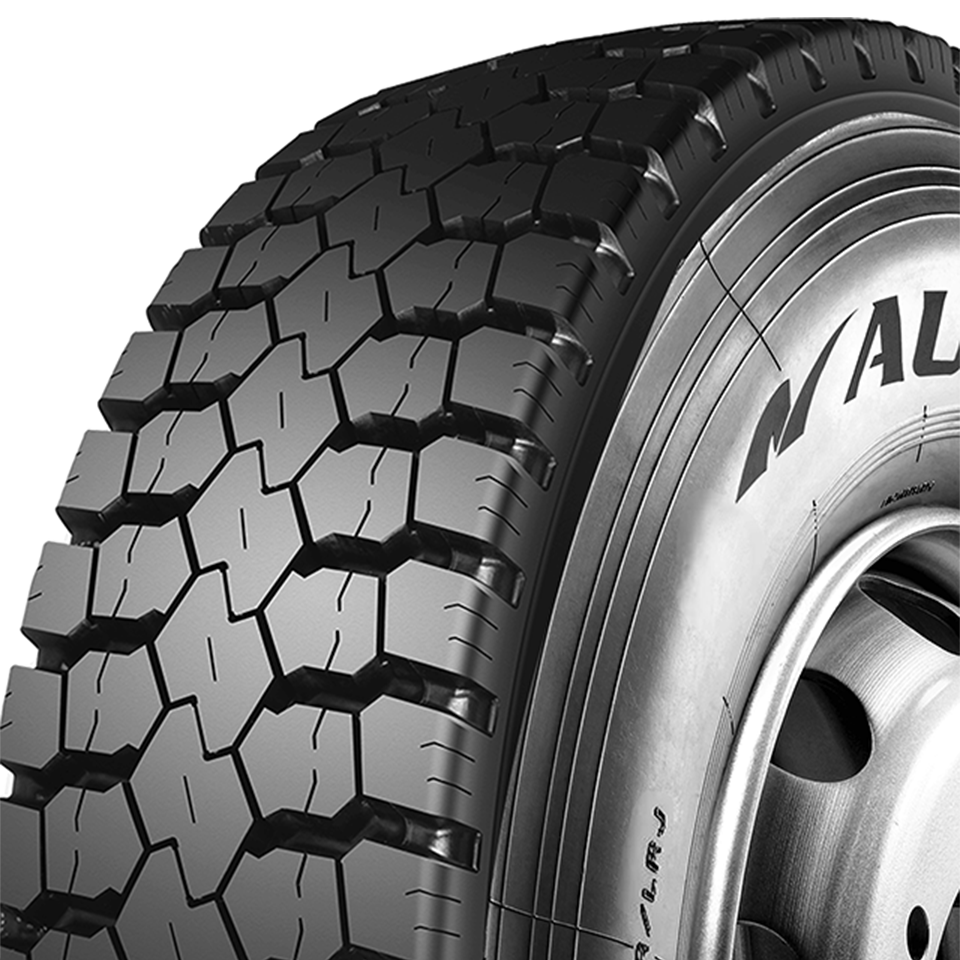

Robust shoulder design ensures resistance to tears.

Features

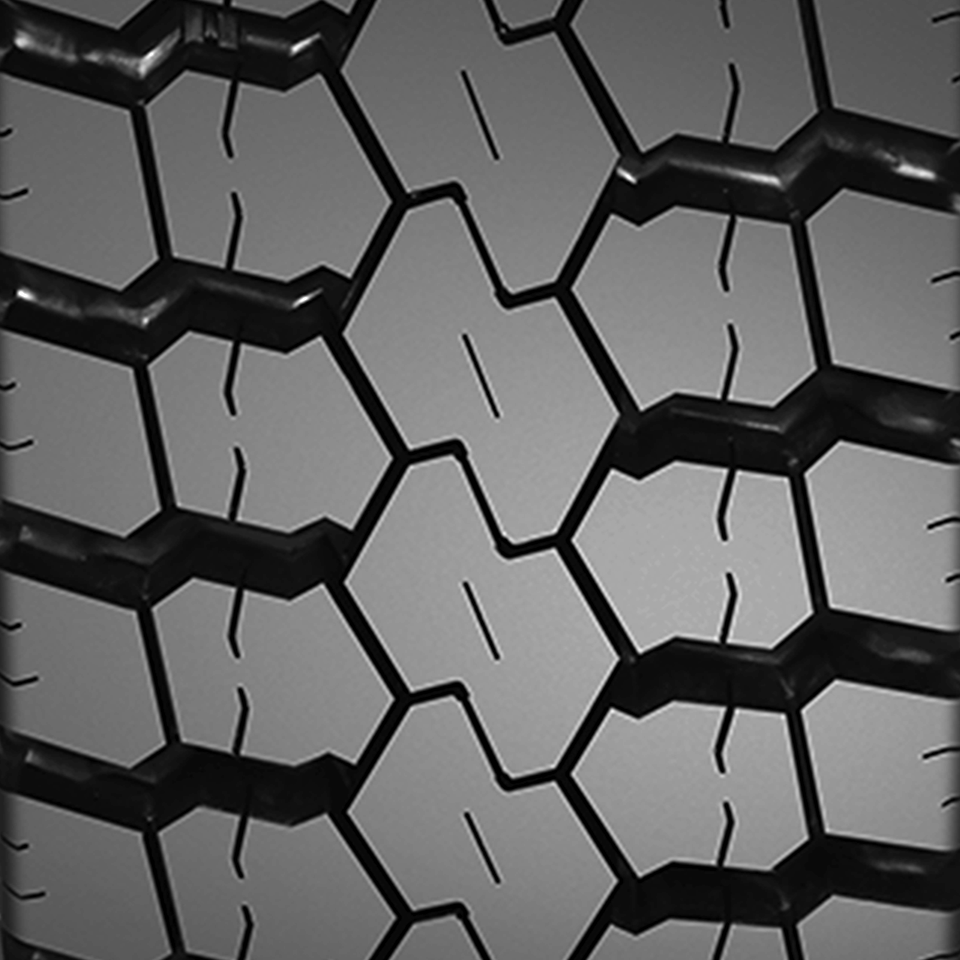

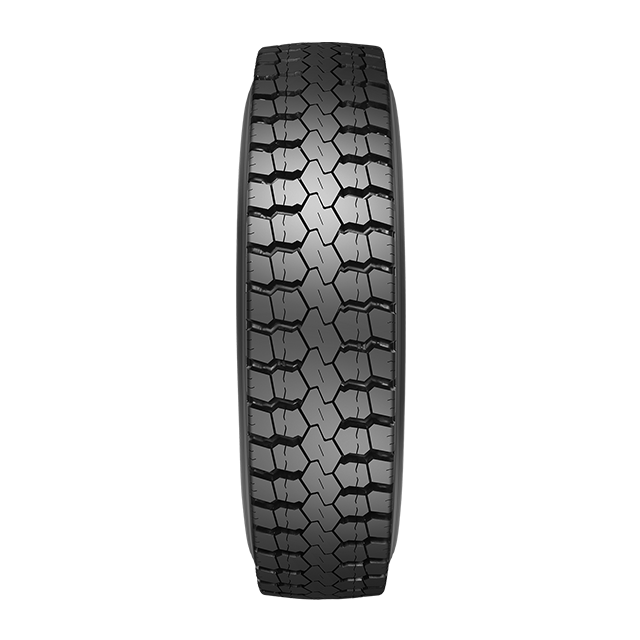

Big block pattern design delivers extended tread life, superb traction and exceptional durability.

Parameter

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
215/75R17.5	16	H	135/133	J	62	17.1	13.6	6.00	4805	125	2180	865	4540	125	2060	865
235/75R17.5	18	J	143/141	J	62	17.1	13.6	6.75	6005	125	2725	865	5675	125	2575	865
275/80R22.5	18	J	149/146	M	81	21.9	17.4	8.25	7160	123	3250	850	6610	123	3000	850
12.00R20	22	M	158/155(156/153)	J(K)	62	21.9	17.4	8.5	9370	140	4250	970	8540	140	3875	970

size

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Tread Depth		Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	32nds	mm	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
215/75R17.5	16	H	135/133	J	62	17.1	13.6	6.00	4805	125	2180	865	4540	125	2060	865
235/75R17.5	18	J	143/141	J	62	17.1	13.6	6.75	6005	125	2725	865	5675	125	2575	865
275/80R22.5	18	J	149/146	M	81	21.9	17.4	8.25	7160	123	3250	850	6610	123	3000	850
12.00R20	22	M	158/155(156/153)	J(K)	62	21.9	17.4	8.5	9370	140	4250	970	8540	140	3875	970
